Description

Type-C trunking compatible

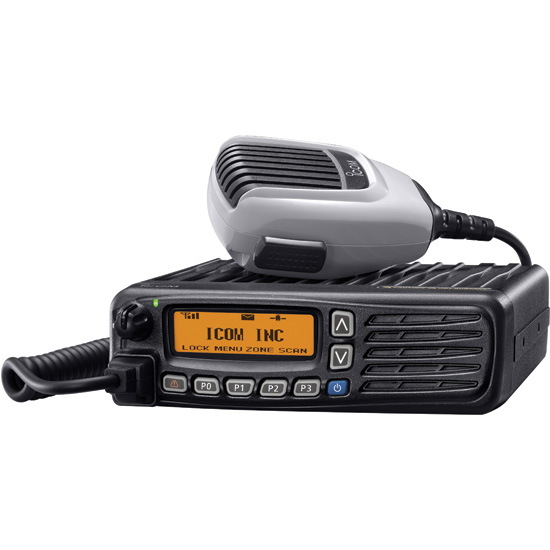

The IC-F5360D series provides NXDN™ Type-C trunking and NXDN™ conventional systems.

• Paging call
• Broadcast call
• All call
• Group call
• Individual call
• Status call
• Text message
• Emergency call
• Stun and Kill (RX)
• Radio check (RX)
• Over-the-air alias
• GPS
• 15-bit digital scrambler
• RAN (Radio Access Number)
• Digital/analog mixed mode operation (Conventional system)

Menu-driven user interface

The menu-driven user interface provides easy and intuitive operation. The functions can be toggled with the left and right [P2] and [P3] buttons and allow you to perform various operations and settings.

Built-in GPS receiver*

Your current position data can be attached to a voice or data (status or emergency signal) transmission and can be sent􀀁to dispatch stations.
*External GPS antenna required.

Transparent data

When IC-F5360D series is connected to a PC or other external equipment, the transparent data function allows data communication in a digital mode. It can be used for remote telemetry system control or data applications.

D-Sub accessory connector

The IC-F5360D series has a D-Sub 15-pin ACC connector for connecting various external devices.

Other features

• MIL-STD 810 G rugged construction
• 512 channels with 128 zones
• CTCSS/DTCS/DTMF encoder/decoder*
• MDC 1200 PTT ID transmission*
• Audio compander*
• Inversion voice scrambler*
• 4W front mounted speaker

(* = Analog mode only)

Supplied accessories

May vary depending on version.

• Hand microphone (HM-148G)
• DC power cable
• Mounting bracket kit
• Microphone hanger
