Description

IDAS™ digital mode operation

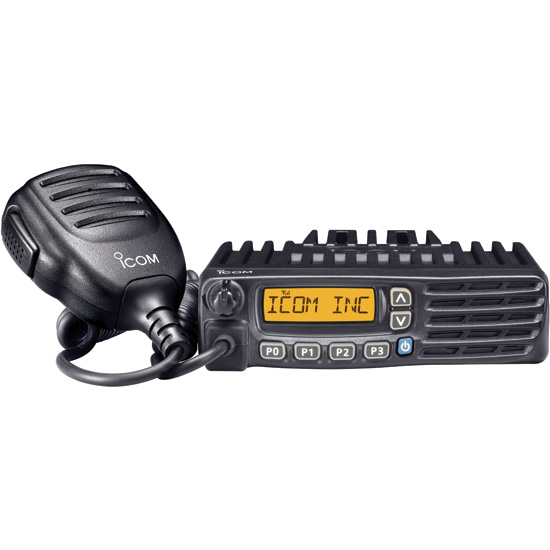

The IC-F5220D series provides NXDN™ CAI-based IDAS digital mode operation. It is compatible with IDAS multi-site conventional and IDAS multi-site and single-site trunking.

4W front mounted speaker

4 watts* front facing speaker delivers clear and loud audio throughout a vehicle’s cabin. In addition, the digital modulation provides distinct clarity even at the fringes of the communication range.
*Typical with internal speaker.

Channel announcement

When you change the operating channel, the radio announces the channel number. Convenient for making radio adjustments without having to look at the radio.

Roaming scan

In the multi-site trunking mode, if the signal condition worsens as the radio user moves, the roaming scan automatically finds a new site to retain the communication link and quality.

Built military rugged

The tough aluminum die-cast chassis and polycarbonate front panel have been tested to the MIL-STD-810 environmental tests.

Optional accessory cable

An external GPS receiver, PC or other equipment can be connected with the optional OPC-2078 (D-sub 25-pin) or OPC-1939 (D-sub 15-pin). The ACC connector provides an ignition switch, external PTT, serial input/output, horn honk, channel control and public address functions, according to the programming.
*No digital modulation “IN” using accessory cables.

IDAS™ digital mode features

• Up to 500 individual and up to 500 group ID aliases (Each for single-site/multi-site/conventional)
• PTT ID and ANI
• SDM (Short Data Message)
• RAN (Radio Access Number)
• Digital voice scrambler
• GPS data (PC and software required to show received position data)
• Call alert
• Radio check (RX)
• Remote monitor (RX)
• ATB (All Trunks Busy) ring back
• Status
• Stun/kill/revive (RX)
• Emergency

*TX: Transmit, RX: Receive

Other features

• CTCSS/DTCS encode/decoder*
• Microphone hanger action programmable
• Talk around function
• Forced narrow function*
• Voting scan
• Time-out-timer, lock-out penalty
• 128 channels with 8 zones
• Power-on password function
• Nuisance delete function

(* = Analog only)
